BASIC INFO

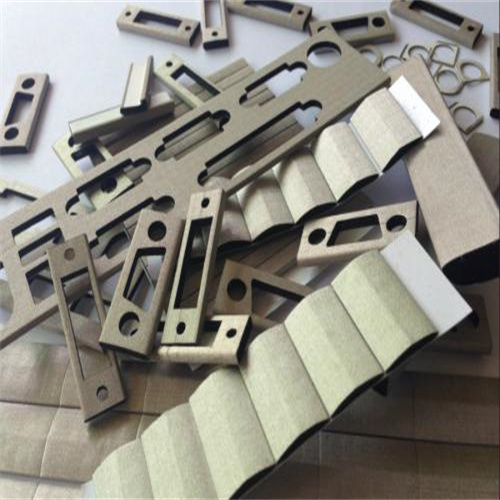

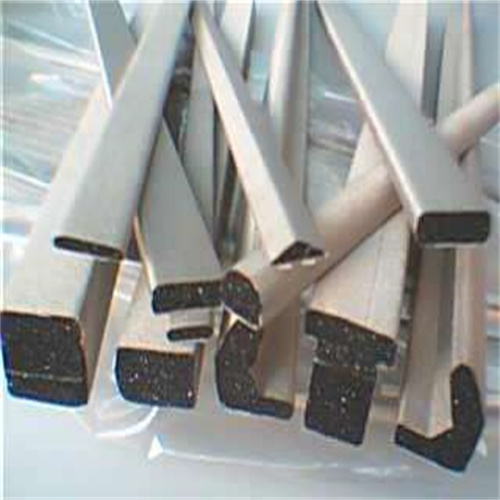

FOF GASKET Wrapped open cell pu foam by Cu+Ni conductive fabrics,black fabric or aluminum foil used for EMI-RFI shielding. Any shapes, size and I/O or D-SUB gasket are avaliable as customer design. The most popular are rectangular shape ,D shape,Bell shape ,C fold or P shape.
Specification:
1) Surface resistance: ≤0.05Ω/inch (100g load capacity)
2) EMI effectiveness:90- 100dB/20MHz - 10GHz
3) Thermal temperature : -40° - 110°
4) Adhesion strength: ≥1.3kg/25mm
5) Initial adhesion strength: 1,600g/25mm (non-conductive type)
6) Maintained adhesion strength: 1,440min/inch
7)Fire rating: UL94-V0
Specification:
1) Surface resistance: ≤0.05Ω/inch (100g load capacity)
2) EMI effectiveness:90- 100dB/20MHz - 10GHz
3) Thermal temperature : -40° - 110°
4) Adhesion strength: ≥1.3kg/25mm
5) Initial adhesion strength: 1,600g/25mm (non-conductive type)
6) Maintained adhesion strength: 1,440min/inch
7)Fire rating: UL94-V0
